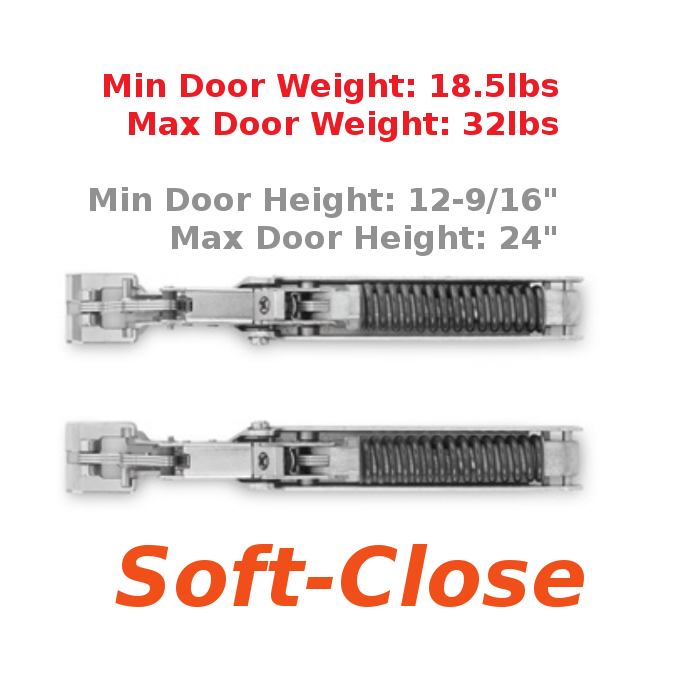

Wind Soft-Close Door Lifting System for Medium Large Doors by Salice - FRAKFEXFSN9
$71.20
AVAILABLE TO ORDER
SKU
FRAKFEXFSN9
Specs (pdf)
- The weight of the door must also be considered when selecting the correct lift system. Please refer to the charts system selection by weight and door dimension.
- * The Wind lift is supplied with an angle reduction clip installed, reducing the opening angle to 85 degrees.
- The reduction clip may be removed to achieve an opening angle of 94 degrees if the "K" boring distance on the door is 5mm or less.
- *Opening angle of 85 degrees.
- Maximum door thickness: 28mm (1-1/8").
- Minimum door thickness: 16mm (5/8").
- Top overlay possibility: From 16mm to 20mm.
- Edge bore distance on the door: 3.0mm to 7.0mm.
- Depth adjustment: -1.0mm, +3.0mm.
- Side adjustment: +2.0mm, -2.0mm.
- Height adjustment: +2.0mm, -2.0mm.
- Available with soft close or Push self open features.
Specs (pdf)
Wind is an innovative new lift door system for flap doors characterized by its compactness and elegant design. Due to its small size, it takes up a minimal amount of valuable space. Its small size also makes Wind perfect for smaller lift doors found frequently in kitchen designs. Wind is suitable for many applications including kitchens, office furniture, commercial cabinetry and residential furniture. The system is available with an integrated soft close feature or with the Push self opening feature for handle-less doors. Specifying and ordering Wind is greatly simplified over other lift hardware previously available. Wind is offered in kit form and relies on only 5 force levels to satisfy a very large range of door sizes and weights. Easy adjustments can be made with only a screw driver which increases the versatility of the system. The color coded springs makes inventory control and selection easy to understand. Installation on the door is as simple as boring a 35mm hinge cup hole. Positioning and installation in the cabinet is equally as easy. The snap-on technology simplifies in-shop assembly. One Wind kit consists of a right and left mechanism, 2 door cups and a left and right mechanism housing. Wind cover kits are sold separately. A cover kit includes a left and right cover plus 2 cover caps. Cover caps can be personalized with the customer logo.
| Documents | Specs (pdf) |
|---|---|
| Sold As | Pair |
| Door Height | 12-19/32" (320 MM.), 14-3/16" (360 MM.), 15-3/4" (400 MM.), 17-5/16" (440 MM.), 18-29/32" (480 MM.), 20-15/32" (520 MM.), 22-1/16" (560 MM.) |
| Hinge Close Type | Soft-close |
| Lead Time | AVAILABLE TO ORDER |
