TP-1935 Precision Cabinet Hardware Jig and Long Hardware Extensions
$366.30
AVAILABLE TO ORDER
SKU
TP-1935
Versatile 3 – in – 1 tool: door hardware – drawer hardware – shelf holes. The complete template solution for the cabinet installer.
- Install hardware up to 30-1/4″ C-C (800mm) AND portable 32mm shelf pin holes
- Install shelf pin holes before or after cabinet assembly
- Durable aircraft quality aluminum
- 5mm case hardened steel bushings are replaceable
- Made in USA

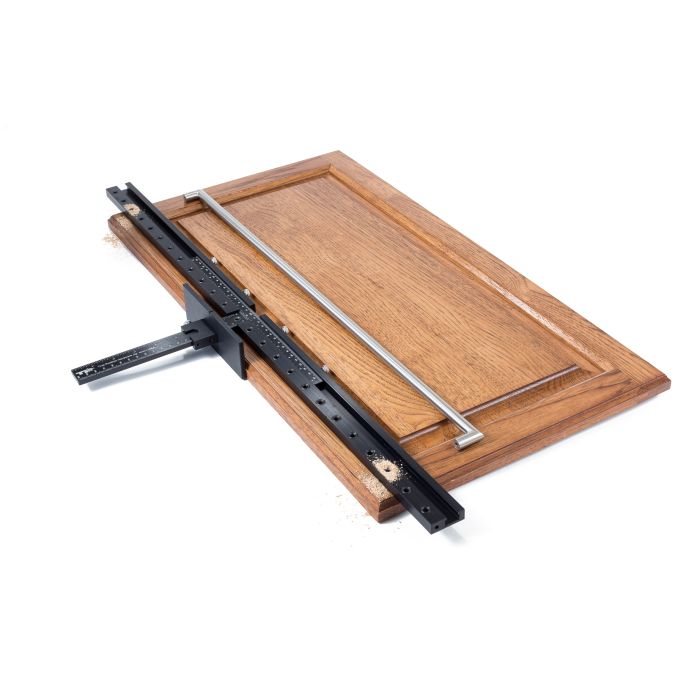

Versatile 3 – in – 1 tool: door hardware – drawer hardware – shelf holes. The complete template solution for the cabinet installer. Also a great alternative to the line boring machine for the small shop. Includes the Cabinet Hardware Jig (TP-1934 Cabinet Hardware Jig) with additional Long Hardware Extensions for 32mm line boring. Drill shelf holes in the shop before assembly or on the job after assembly. Simply slide guides and stop along English/Metric rulers, tighten thumb screws and drill. Also drills long handles up to 31-Inch length. Locates hardware holes of any dimension on door and drawer fronts. Includes standard 5MM drill bit (approx. 3/16-Inch). Durable lightweight aluminum with case hardened steel bushings. Made in USA.
- Jig Body Material: Aircraft quality aluminum
- Bushings: (27) 5mm Case Hardened Steel, Lifetime Warranty
- Max CC: 30-1/4″ (800mm)
- Drawers: Centers on any width of drawer up to 16″ depth
- Doors: Centers on Style and Rail minimum width 1/2″
- Weight: 3.9 lbs
- Includes: (1) T-Square w/ center bushing, (2) Sliding drill guides, End stop, Top stop, (2) Extension bars w/ end stop, 5mm drill bit w/ stop collar, Cardboard case w/ handle
- Manual:
English
Spanish - Brochure: TP 1934 Brochure
- Country of Origin: USA
| Sold As | Each |
|---|---|
| Lead Time | AVAILABLE TO ORDER |
| Manufacturer | True Position Tools |
