Soft Close Compact , 1/2" Overlay, Face Frame Hinge, 105-degree opening, 7/16" cup depth, Wood Screw mount
$2.06
IN STOCK
SKU
H294-SC

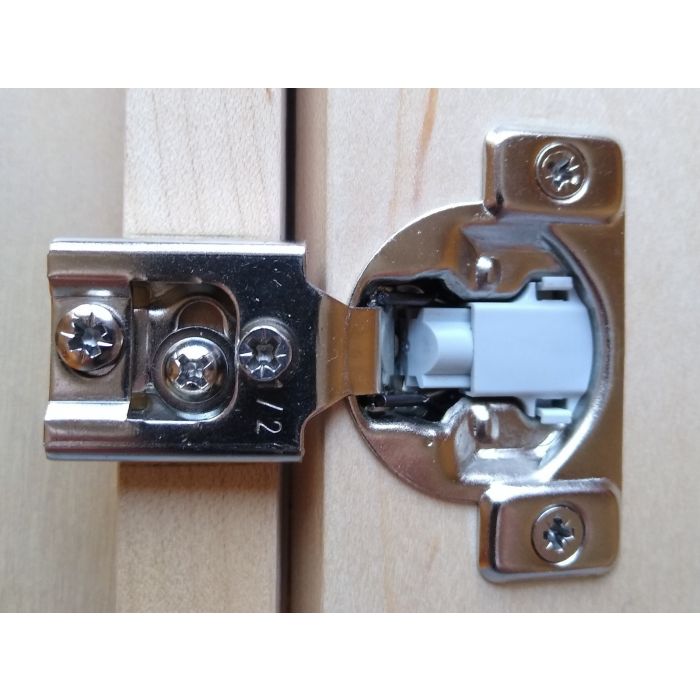

Soft close 1/2" overlay compact face-frame hinge wood screw mount
Soft Close Face Frame Compact Hinge
1/2" overlay
105-degree opening
7/16" cup depth
Woos=d screw mount
Adjustable soft close, may use one or two soft close hinges for desired soft close action.
Cam adjust in out
Cam adjust side to side
Fixing screw adjust height
| Hinge Material | Steel |
|---|---|
| Hinge Additional Features | 2 Cam Adjustment, 1 Fixing Screws |
| Hinge Cup Depth | 11mm |
| Hinge Series | Face Frame |
| Hinge Hole Spacing | 45mm |
| One Piece Hinge Overlay | 1/2" |
| Required Drilling Distance (TAB) | 2.5mm |
| Hinge Degree of Opening | 105° |
| Hinge Cup Diameter | 35mm |
| Hinge Fixing System | Screw-on |
| Hinge Cup Color | Nickel |
| Hinge Close Type | Soft-close |
| Hinge Arm Shape | 1/2" Overlay |
| Hinge Arm Color | Nickel |
| Sold As | 1 Each |
| Lead Time | IN STOCK |
| Manufacturer | Pride |
