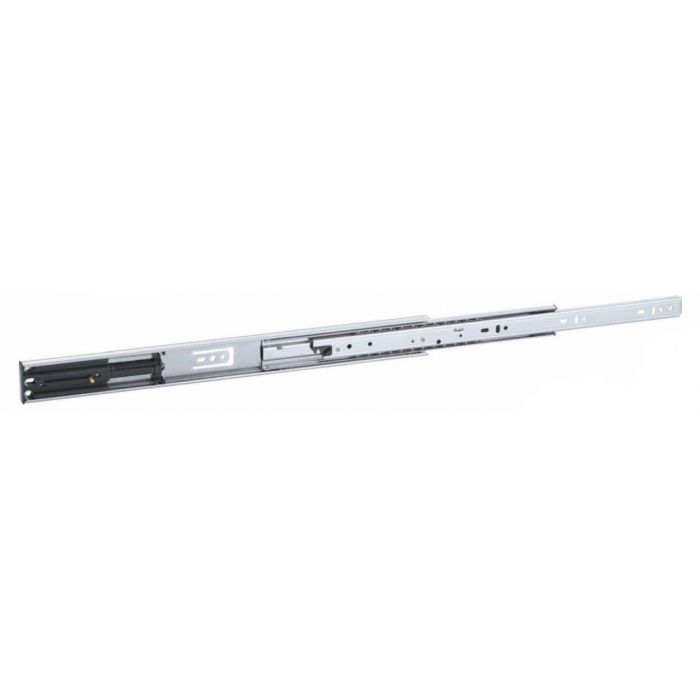

Repon 100 lbs 20" Full Extension Soft-close Drawer Slide MFG# 12415 04 120
$16.11
AVAILABLE TO ORDER
SKU
12415-04-120
- Full extension
- Side mount
- Height: 1-13/16” (45.7 mm)
- Side spacing: 1/2” (+ 1/32” – 0”), 12.7 mm (+ 0.38 mm – 0 mm)
- Load rating: 100 lbs
- Electro zinc finish
- Screw mounting system 32 mm compatible
- Patented Push button release for effortless drawer removal
- RoHS Compliant
- Patented exclusive “dry” damper soft close eliminating all leakage issues
- NJ-35D65 Model Family
| Mount | Side Mount |
|---|---|
| Length | 20" |
| Extension | Full-Extension |
| Capacity | 100 lb |
| Color | Zinc |
| Close Movement | Soft Close |
| Overtravel | Non-Overtravel |
| Style | Ball Bearing |
| Sold As | Pair |
| Lead Time | AVAILABLE TO ORDER |
| Manufacturer | Repon |
