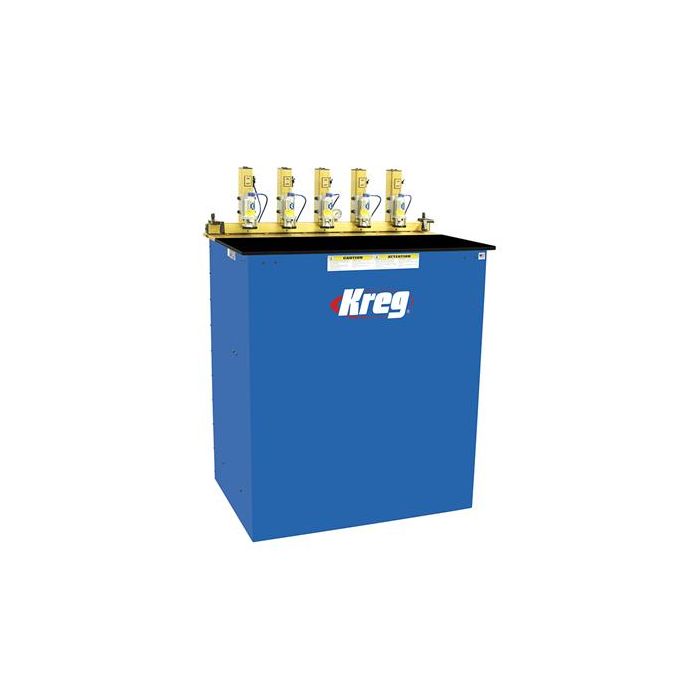

Kreg 5-Spindle Pocket Hole Machine DK5100 Sold As Each
$12,999.00
AVAILABLE TO ORDER
SKU
KREG #DK5100
Five individually-actuated motors
Five clamping cylinders
Five durable drill spindles
Entirely pneumatic design
Hardened-steel drill guides to maximize drill bit life
One-touch, foot pedal operation
Swing Stops for optimized material positioning
Dust collection chutes for efficient chip removal
Pre-filter and automatic lubricator
Description
Five industrial-grade motors, five individually-activated clamping cylinders, and five durable drill spindles; all in one amazing machine. The DK5100 makes drilling multiple pocket holes across cabinet sides, shelving, stairs, and window or door extensions easier than ever before. In the right setting, it can beat the bottle-neck that’s slowing down your shop and significantly improve your bottom line.
This machine is built for the shop that has a specific repetitive application that demands increased productivity. The time saved by drilling up to five pocket holes at once is truly dramatic and will allow you to reallocate resources to areas of your shop that need more attention.
Individual Control
Each of the five spindles is controlled with an on/off switch located on each clamping tower, giving you instant control of every spindle. Drill with all five spindles at once or turn a couple off to best meet the needs of your project.
5 Pocket Holes, 1 Machine Cycle
The DK5100’s five spindles are spaced 6" on-center, the perfect spacing for many panel applications. A simple tap of the foot pedal will create five uniform pocket holes in less than two seconds.
Pneumatic Power
All five drill spindles are driven by industrial-grade, pneumatic motors that are designed to provide you with plenty of drilling power, panel after panel, year after year.
Specs
Motor
(5) pneumatic 3/4-HP motors
Drill Bits
DKDB Drill Bit
3/8" shank diameter
3/16" pilot
1/2"-long
CFM Rating
20 CFM at 50% duty cycle
(120 PSI/minute)
Cycle Time
2 seconds
Material Clamping Capacity
1-3/4"
Hole-Centering Capability
1/2"-thick to 3/4"-thick material
Weight
350 lbs.
Dimensions
50"H x 36"W x 24"D
40" table height
On-Center Spindle Spacings
6"
Warranty
5 Years
Included
(1) Panel-Boring Pocket-Hole Machine and Complete Owner's Manual
Five clamping cylinders
Five durable drill spindles
Entirely pneumatic design
Hardened-steel drill guides to maximize drill bit life
One-touch, foot pedal operation
Swing Stops for optimized material positioning
Dust collection chutes for efficient chip removal
Pre-filter and automatic lubricator
Description
Five industrial-grade motors, five individually-activated clamping cylinders, and five durable drill spindles; all in one amazing machine. The DK5100 makes drilling multiple pocket holes across cabinet sides, shelving, stairs, and window or door extensions easier than ever before. In the right setting, it can beat the bottle-neck that’s slowing down your shop and significantly improve your bottom line.
This machine is built for the shop that has a specific repetitive application that demands increased productivity. The time saved by drilling up to five pocket holes at once is truly dramatic and will allow you to reallocate resources to areas of your shop that need more attention.
Individual Control
Each of the five spindles is controlled with an on/off switch located on each clamping tower, giving you instant control of every spindle. Drill with all five spindles at once or turn a couple off to best meet the needs of your project.
5 Pocket Holes, 1 Machine Cycle
The DK5100’s five spindles are spaced 6" on-center, the perfect spacing for many panel applications. A simple tap of the foot pedal will create five uniform pocket holes in less than two seconds.
Pneumatic Power
All five drill spindles are driven by industrial-grade, pneumatic motors that are designed to provide you with plenty of drilling power, panel after panel, year after year.
Specs
Motor
(5) pneumatic 3/4-HP motors
Drill Bits
DKDB Drill Bit
3/8" shank diameter
3/16" pilot
1/2"-long
CFM Rating
20 CFM at 50% duty cycle
(120 PSI/minute)
Cycle Time
2 seconds
Material Clamping Capacity
1-3/4"
Hole-Centering Capability
1/2"-thick to 3/4"-thick material
Weight
350 lbs.
Dimensions
50"H x 36"W x 24"D
40" table height
On-Center Spindle Spacings
6"
Warranty
5 Years
Included
(1) Panel-Boring Pocket-Hole Machine and Complete Owner's Manual
| Sold As | Each |
|---|---|
| Joinery Method | Pocket-hole |
| Lead Time | AVAILABLE TO ORDER |
