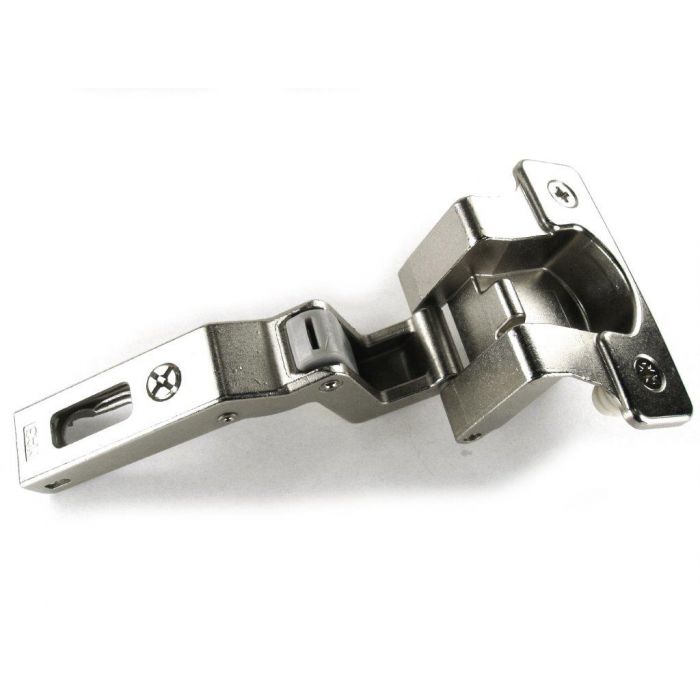

Concealed Hinge Salice 270° Opening Knock-in (dowels) Self-close Single Pivot PN: CMR3A99
$6.74
AVAILABLE TO ORDER
SKU
CMR3A99
- Buy 25 for $6.13 each and save 9%
- Buy 100 for $6.00 each and save 11%
Hinge Attributes
| Hinge: | CMR3A99 |
|---|---|
| Arm Shape: | Full Overlay |
| Degree of Opening: | 270° |
| Fixing System | Knock-in (dowels) |
| Close Type: | Self-close |
| Color: | Nickel |
| Cup Depth: | 12mm |
| Hinge Special Feature: | Single Pivot |
| Manufacturer: | Salice |
| Sold As: | Each | Baseplate Required | Yes |
| Documents |
|
|---|---|
| Hinge Material | Steel |
| Hinge Additional Features | Single Pivot |
| Hinge Cup Depth | 12mm |
| Hinge Series | Single Pivot Series |
| Hinge Hole Spacing | 45mm |
| Hinge Degree of Opening | 270° |
| Hinge Cup Diameter | 35mm |
| Hinge Fixing System | Knock-in (dowels) |
| Hinge Cup Color | Nickel |
| Hinge Close Type | Self-close |
| Hinge Arm Shape | Full Overlay |
| Hinge Fixing Hole Diameter | 8mm |
| Hinge Arm Color | Nickel |
| Minimum Reveal on 3/4" Square Edge Doors | 8.3mm |
| Sold As | Each |
| Lead Time | AVAILABLE TO ORDER |
| Manufacturer | Salice |
