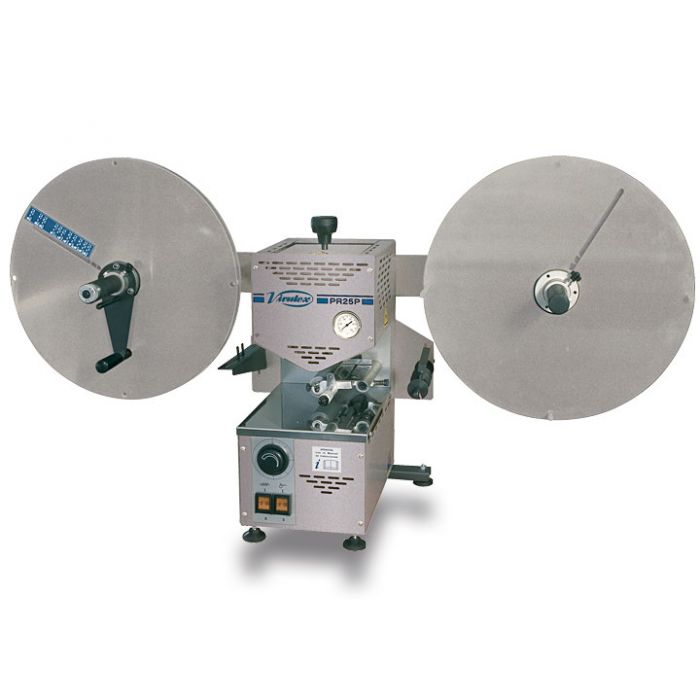

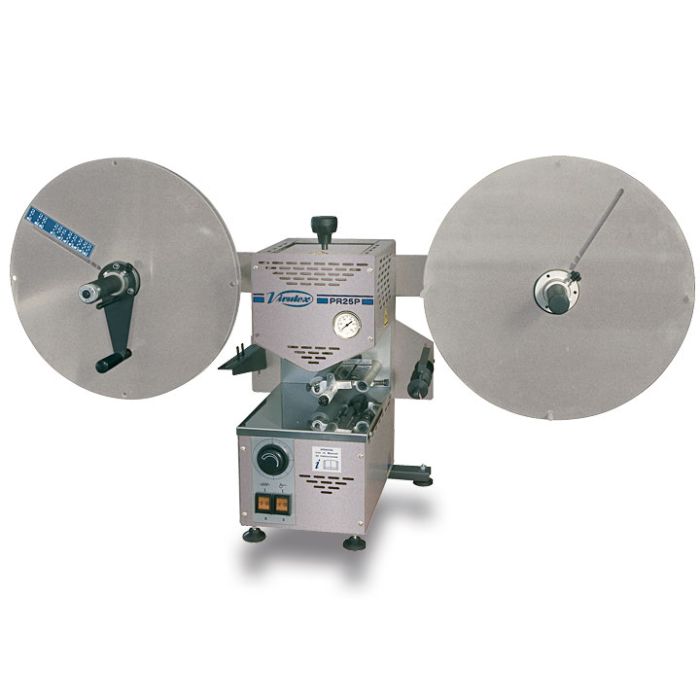

Automatic Production Pre-Gluer Model PR25P-DV Sold As Each
$2,600.00
AVAILABLE TO ORDER
SKU
PR25P
Delivery: 3 to 4 weeks
For pre-gluing edge banding tapes, wood
and plastic laminate strips for use with hot
air edge banders. Low maintenance, hot
melt pre-gluer for plastic or wood tapes and
laminate strips for use with hot air banders.
It includes thermoelectric temperature
control, automatic start and stop of the feed
motor. It automatically contols the quantitiy
of the glue applied to the back of the tape
and creates a constant
density of the glue applied on the tape.
Min tape thickness: 1/64" (0.4mm)
Max strip thickness: 5/8" (16mm)
Max tape roll thickness: 5/64" (2mm)
Max tape width: 4-3/32" (104mm)
Feeding Speed: 33 feet per minute
Glue tank capacity: 4.4 Lbs
Weight: 58 Pounds
Dimension: 9" x 16" x 22"
Input power:1720 W + 120 W
Starting Temp.= 140 C
Application rate: 60 to 200 grams of
glue per square meter
Pre-gluing of laminate or edge tape
strips without using the coil rewinder.
Easy access glue tank located on
the top. Glue application system
includes easy to clean, non-stick
silicon roller.
The PR25P-DV has a built in motorized winder with
an adjustable pulling system which allows the pulling
force to be adjusted according to the thickness of
the dge tape. It also has a drying unit so that the
pre-glued edge can be re-coiled totally dried.
Optional ( 2545628 ) automatic winder kit converts
the basic model PR25P into the automatic
PR25P-DV.
Optional(2545633) triple winder can triple
production capacity of the machine by pregluing 3
rolls of with the same thickness.
This option includes: 4 rell loading discs, 4 reel
centering discs, assembly and instruction manuals.
Optional (2545631) tdouble winder can double
production capacity of the machine by pregluing 2
rolls of with the same thickness. This option includes:
4 reel loading discs, 4 reel centering discs, assembly
and instruction manuals.
Optional (2545632) support for large rolls.
Ideal for 2 and 3 mm thick edge rolls.
A blower cools the temperature and makes
rewinding faster.
For pre-gluing edge banding tapes, wood
and plastic laminate strips for use with hot
air edge banders. Low maintenance, hot
melt pre-gluer for plastic or wood tapes and
laminate strips for use with hot air banders.
It includes thermoelectric temperature
control, automatic start and stop of the feed
motor. It automatically contols the quantitiy
of the glue applied to the back of the tape
and creates a constant
density of the glue applied on the tape.
Min tape thickness: 1/64" (0.4mm)
Max strip thickness: 5/8" (16mm)
Max tape roll thickness: 5/64" (2mm)
Max tape width: 4-3/32" (104mm)
Feeding Speed: 33 feet per minute
Glue tank capacity: 4.4 Lbs
Weight: 58 Pounds
Dimension: 9" x 16" x 22"
Input power:1720 W + 120 W
Starting Temp.= 140 C
Application rate: 60 to 200 grams of
glue per square meter
Pre-gluing of laminate or edge tape
strips without using the coil rewinder.
Easy access glue tank located on
the top. Glue application system
includes easy to clean, non-stick
silicon roller.
The PR25P-DV has a built in motorized winder with
an adjustable pulling system which allows the pulling
force to be adjusted according to the thickness of
the dge tape. It also has a drying unit so that the
pre-glued edge can be re-coiled totally dried.
Optional ( 2545628 ) automatic winder kit converts
the basic model PR25P into the automatic
PR25P-DV.
Optional(2545633) triple winder can triple
production capacity of the machine by pregluing 3
rolls of with the same thickness.
This option includes: 4 rell loading discs, 4 reel
centering discs, assembly and instruction manuals.
Optional (2545631) tdouble winder can double
production capacity of the machine by pregluing 2
rolls of with the same thickness. This option includes:
4 reel loading discs, 4 reel centering discs, assembly
and instruction manuals.
Optional (2545632) support for large rolls.
Ideal for 2 and 3 mm thick edge rolls.
A blower cools the temperature and makes
rewinding faster.
| Sold As | Each |
|---|---|
| Lead Time | AVAILABLE TO ORDER |
